3D Dimensions
Create true 3D dimension geometry with 3D text, unit-aware sizing, and pro endpoint styles for SketchUp.
3D Dimensions is a professional SketchUp extension that replaces standard 2D dimensions with actual 3D geometry—ideal for 3D printing, CNC/fabrication workflows, clearance checks in complex assemblies, and high-impact presentations where flat dimensions disappear in perspective views or renders.

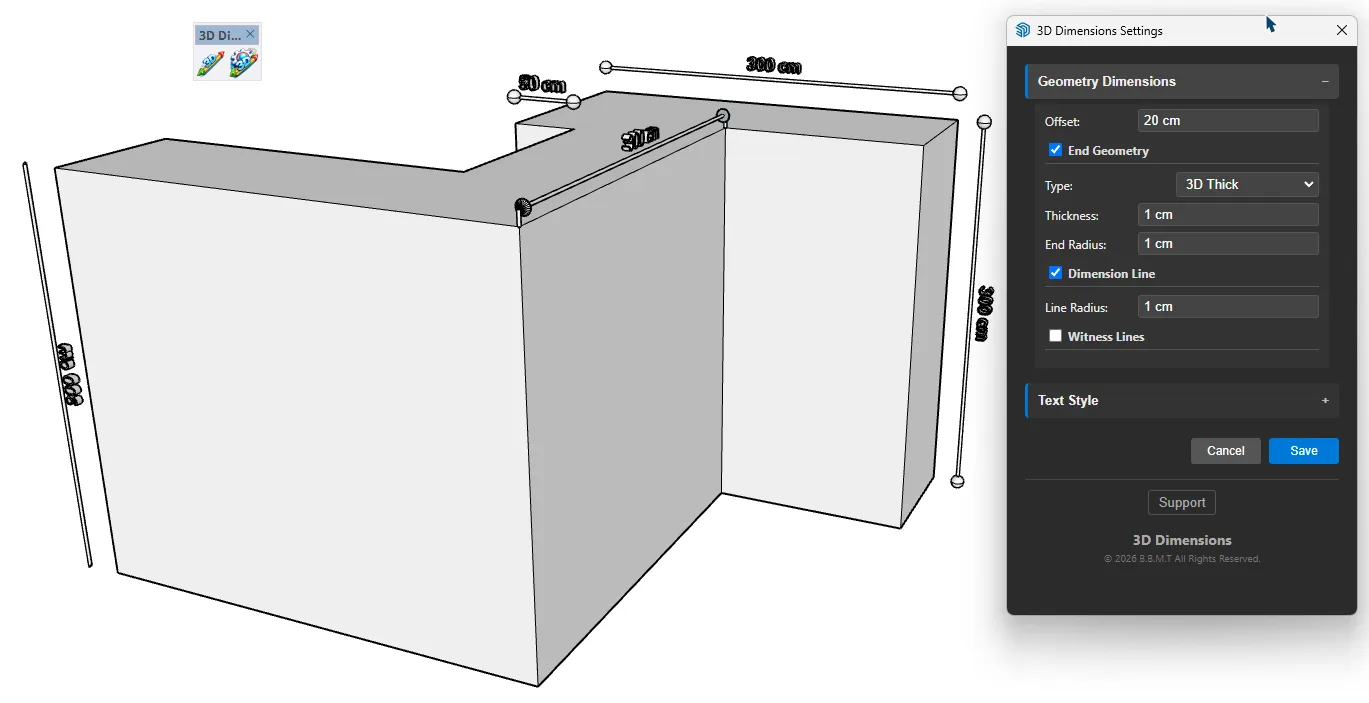

Unlike classic SketchUp dimensions (which are screen-based and view-dependent), 3D Dimensions generates a clean, export-friendly group containing a 3D dimension line, endpoints, and 3D text. The result remains visible in all render modes, stays readable from any angle, and can be included reliably in downstream exports and coordination workflows.
Why 3D Dimensions?
Always visible in 3D: Works in perspective scenes, section cuts, and renders where 2D annotations often get lost.
Real geometry: Dimension text and markers are physical 3D objects (not screen text).
Fabrication-ready visuals: Great for shop models, assemblies, mockups, and client-facing presentations.
