3D Grid

3D Grid is a professional SketchUp extension designed to simplify and accelerate the creation of grid systems in both 2D and 3D environments.

Grids are fundamental in architectural, structural, and BIM workflows. However, creating them manually is repetitive, time-consuming, and prone to inconsistency. This extension eliminates that process by allowing users to generate precise and customizable grids instantly.

The tool supports both planar grid layouts and volumetric grid systems, making it versatile for a wide range of use cases—from early design stages to detailed modeling and coordination.

Core Capabilities 2D Grid Generation

Create clean and precise grid layouts on any working plane. Ideal for:

Floor plans Structural layouts Modular design systems Alignment references 3D Grid Creation

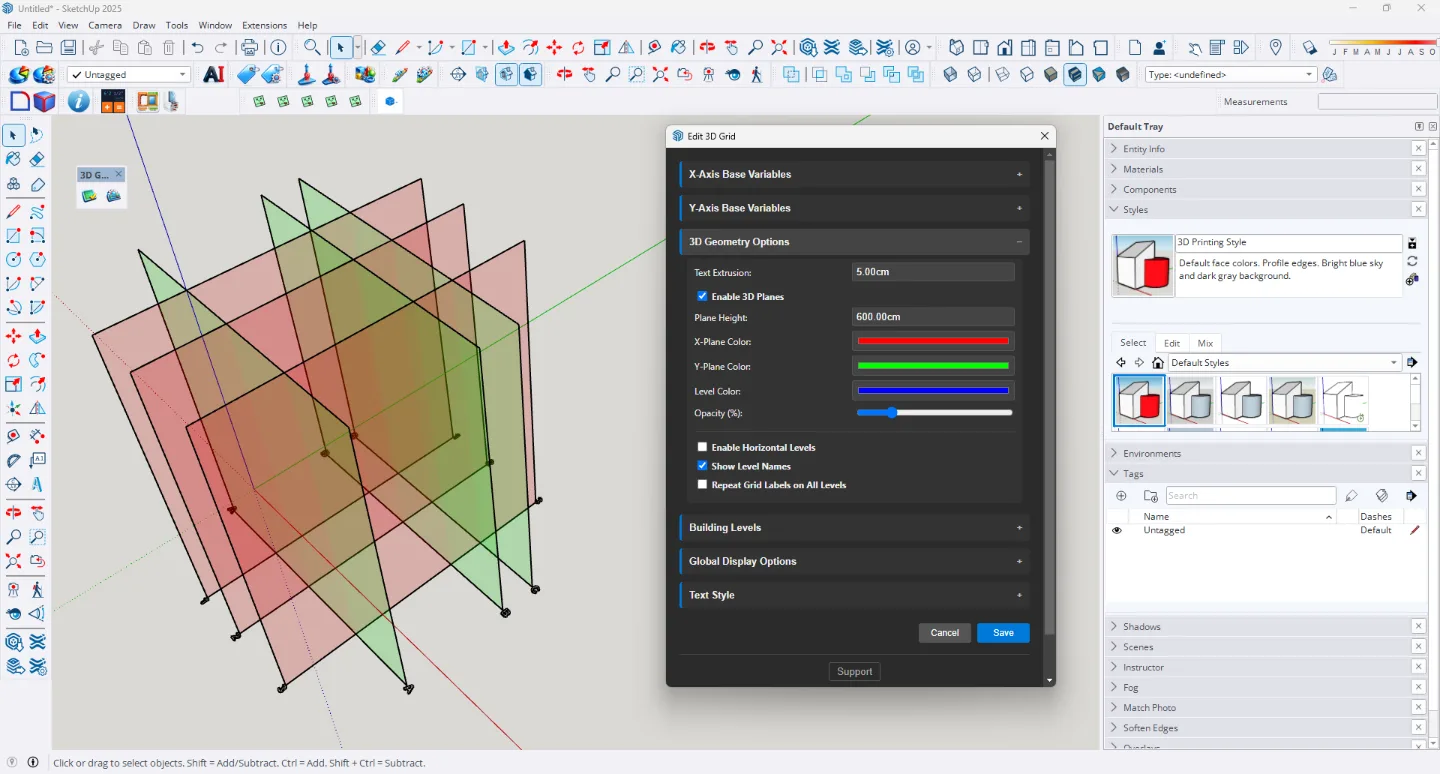

Generate full 3D grid volumes that help visualize and organize space. Useful for:

Spatial coordination Structural frameworks Conceptual massing references Complex modeling alignment Key Features Fast grid generation with minimal input Adjustable spacing along X, Y, and Z axes Customizable grid dimensions Lightweight and optimized geometry Clean and structured output Easy integration into existing models Designed for performance and clarity Workflow

The extension is designed to be simple and efficient:

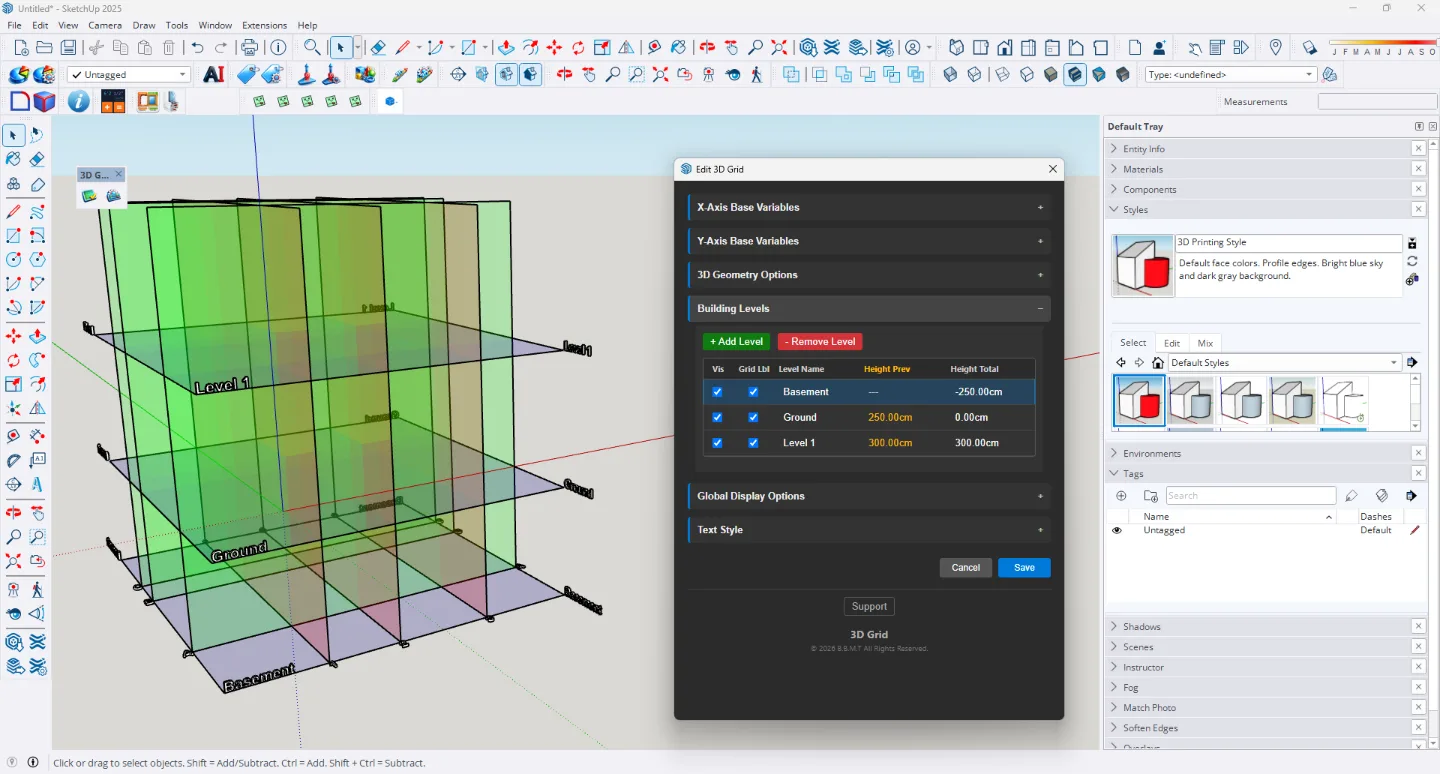

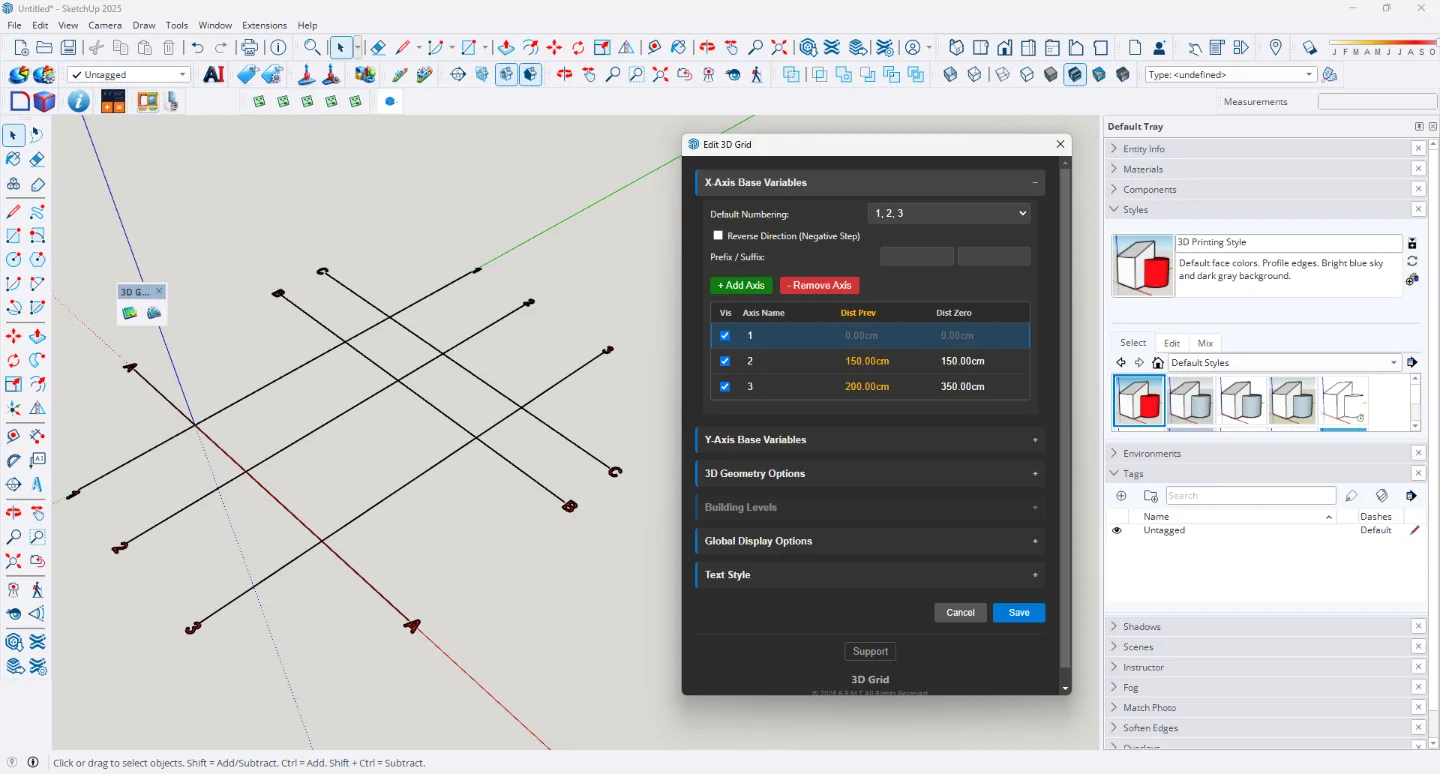

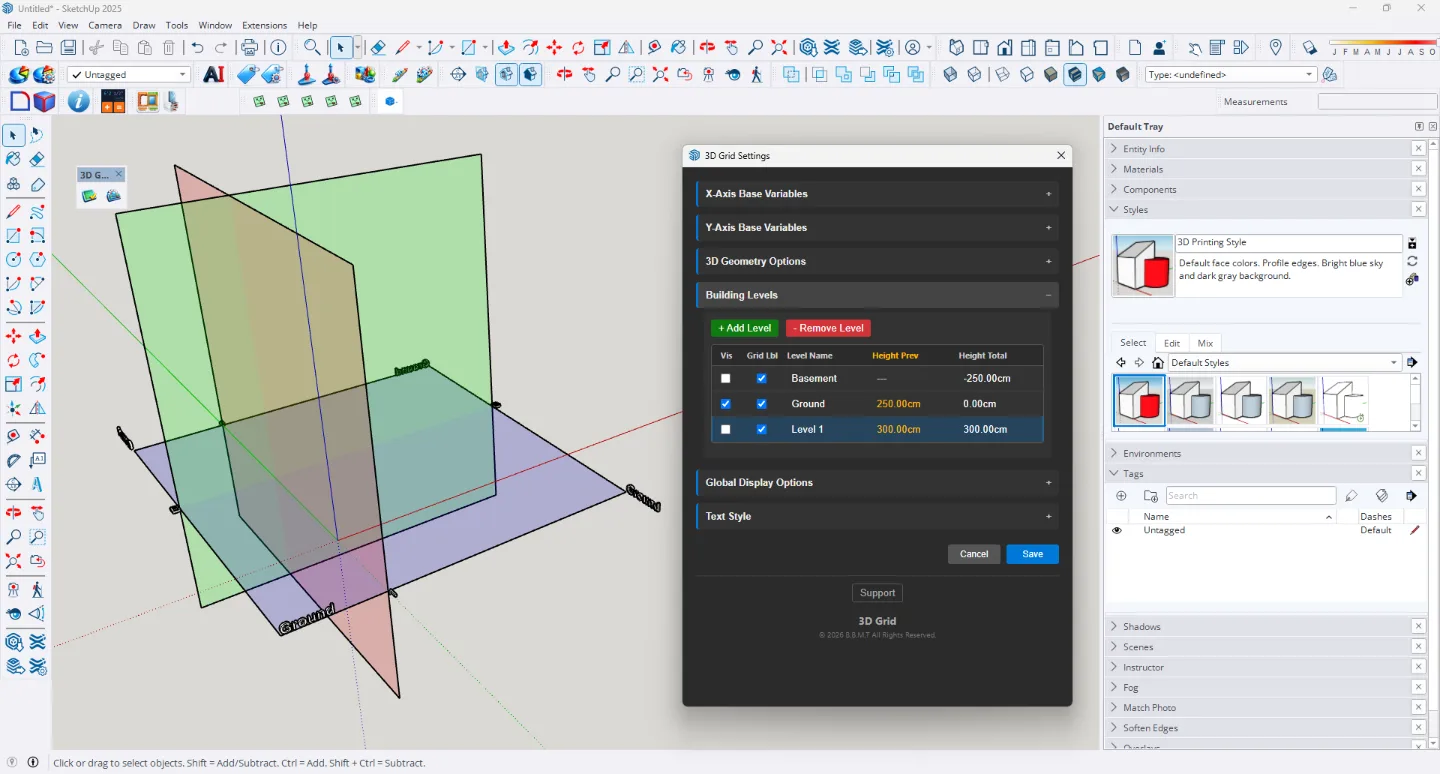

Launch the 3D Grid tool Define grid parameters (spacing and size) Choose between 2D or 3D grid mode Generate the grid instantly in your model

No complex setup or advanced configuration is required, allowing users to focus on design and modeling rather than repetitive drafting tasks.

Use Cases Architectural planning and layout grids Structural framing references BIM coordination models Interior layout organization Parametric and modular design workflows Educational and conceptual modeling Design Philosophy

The 3D Grid extension is built with a focus on:

Efficiency: Reduce manual work Precision: Ensure consistent geometry Simplicity: Keep the tool easy to use Performance: Handle large grids smoothly Compatibility Compatible with SketchUp desktop versions Designed to work on both Windows and macOS Uses a clean file structure for maximum stability and compatibility Future Development

Planned improvements include:

Advanced settings interface Preset grid configurations Dynamic grid editing Visual customization options Integration with other modeling workflows

3D Grid is a practical tool built to enhance productivity and bring structure to your modeling process.
